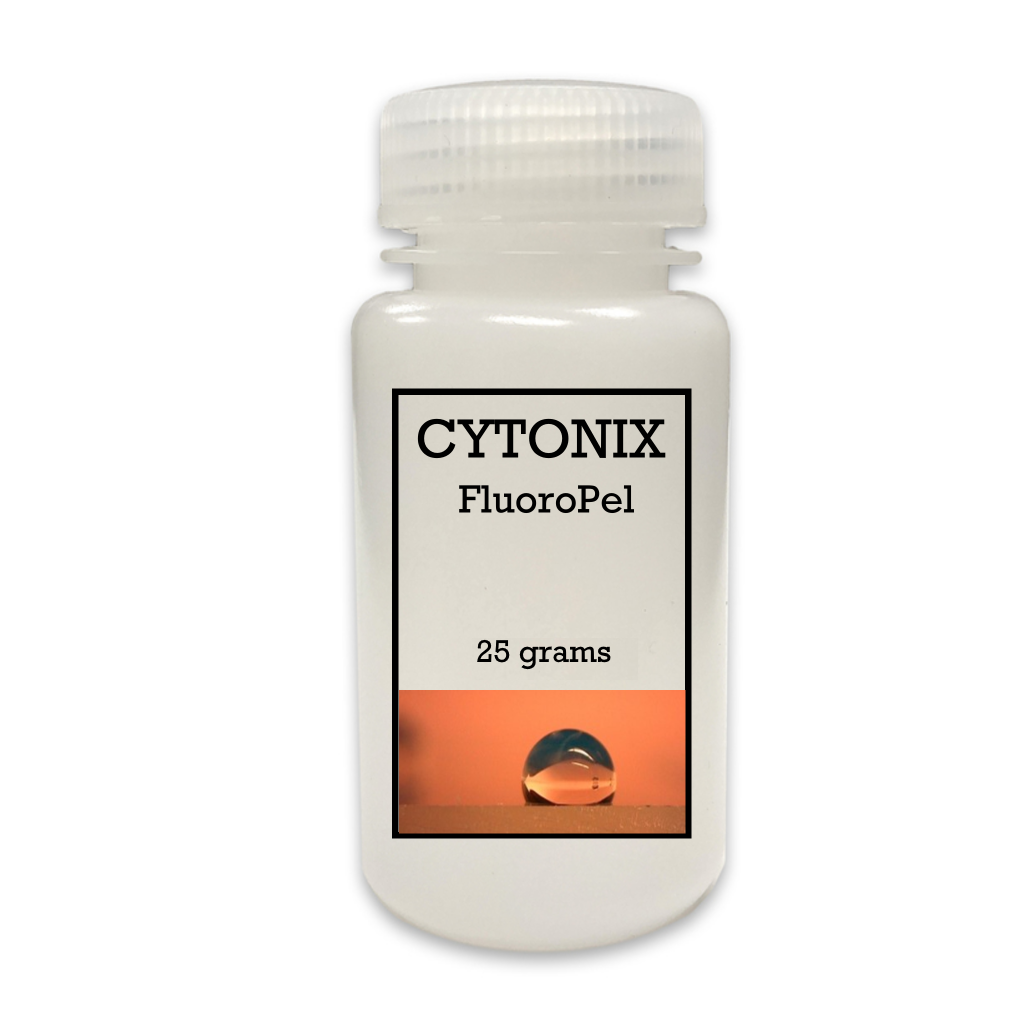

FluoroPel PFC1610V

FluoroPel PFC1610V

Regular price $899.00
Unit price  per
Tax included.

PFC 1610V is a ten percent fluoropolymer solution in a fluorosolvent (BP=160°C) commonly used for electrowetting applications. Thin films dry in 4-6 hours at room temperature to a surface energy of about 16 dynes/cm. Heating to 160°C for 30 minutes optimizes adhesion and reduces the surface energy to about 10 dynes/cm. PFC1610V is recommended for spin, spray or blot applications.

Size: 25 grams
Shelf life: Two years (in sealed unopened container)
Application methods: Immersion, spin, dipping, etc.
Curing: 10 minutes when baked at 180°C
Appearance: Clear, odorless and colorless film
Contact angle to water: >115°
Contact angle to oil: >65°
Hardness: >2B pencil
Flammability: Non-burning
Heat stability: Continuous 150°C
Max heat stability one hour: 250°C
Refractive index: ~1.34
Toxicity of films: HMIS Rating Health = 1
Ease of application: Excellent
Solvent/chemical resistance: Excellent after curing
Transparent: Yes
Water contact angle: ~120
Dielectric constant (@ 100 MHz): 1.9
