FluoroPel PFC602

FluoroPel PFC602

Regular price $59.00 USD
Regular price Sale price $59.00 USD
Sale Sold out
Shipping calculated at checkout.

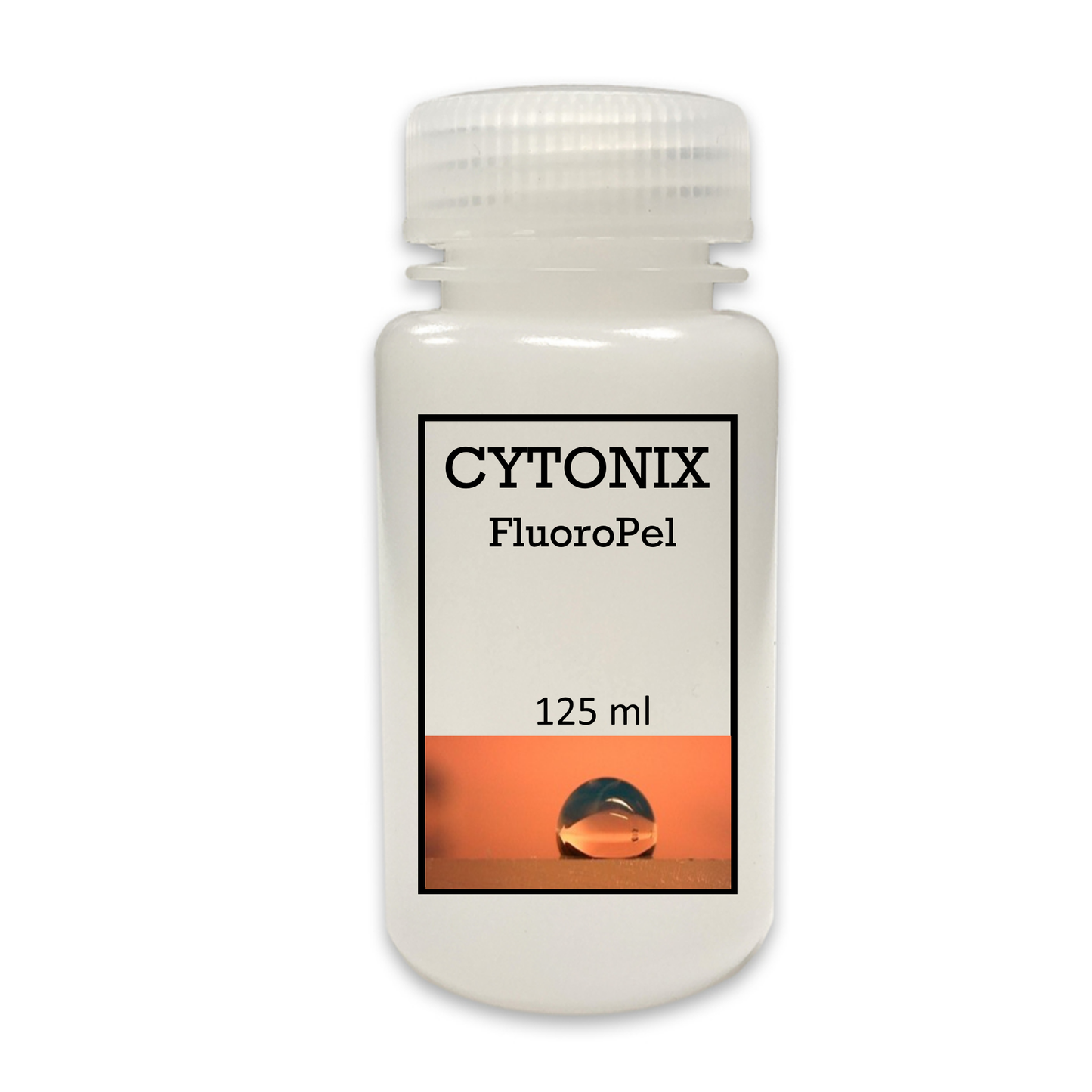

FluoroPel PFC602 is low viscosity, low surface energy solution of a coating carried in a hydrofluoroether solvent. This coating is designed for moisture and corrosion protection of printed circuit boards and electronic components. 602 dries to a thin, transparent, permanent film with great hydrophobic and oleophobic properties. This conformal coating is easy to apply, non-flammable, low in toxicity, non-ozone depleting and RoHS compliant. This version of FluoroPel has a UV-tracer for quality control inspection of coated parts. Thin films (100 - 200 nanometers) dry in a few minutes at room temperature to a surface energy of about 10 dynes/cm. This thin film coating will provide a water contact angle over 105° and a mineral oil contact angle over 60°. Application methods for FluoroPel include dipping, brushing, wiping, spraying, etc. Please contact Cytonix for help with custom formulations or with any questions.

Video: Using FluoroPel to make smartphone water resistant

Amount: 150 grams (125 ml bottle)
Application method: Dipping, spray, syringe-dispense, brushing
Applications: Anti-Stiction, moisture, chemical and corrosion protection
Coating thickness: 100 - 200 nm
Dry time: 30 - 120 seconds‎
Uses: Solder joints‎, printed circuit boards, ball grit arrays, printer heads
Properties: Repels oils, water, hydrocarbons, silicones, photoresists
Solids percent: 2%‎
Thermal cure time: < 1 minute (60-100°C for 10 minutes optional)
Temperature range: -40 to 250⁰C
Flammability: UL94 V-0
Moisture resistance: ~1 x 1012 Ω
Surface energy: <15 dynes/cm
Dielectric constant‎: 3.0 (at 1kHz, 30% relative humidity)‎
Dielectric strength: ~60 kV/mm
Surface insulation resistance: 1 x 10^15 Ω
Dissipation factor: 0.016 @ 1MHz
Water contact angle: 105⁰
Package options: 3 LBS (liter bottle), 10 LBS (gallon bottle), 60 LBS (6 gallon carboy)
