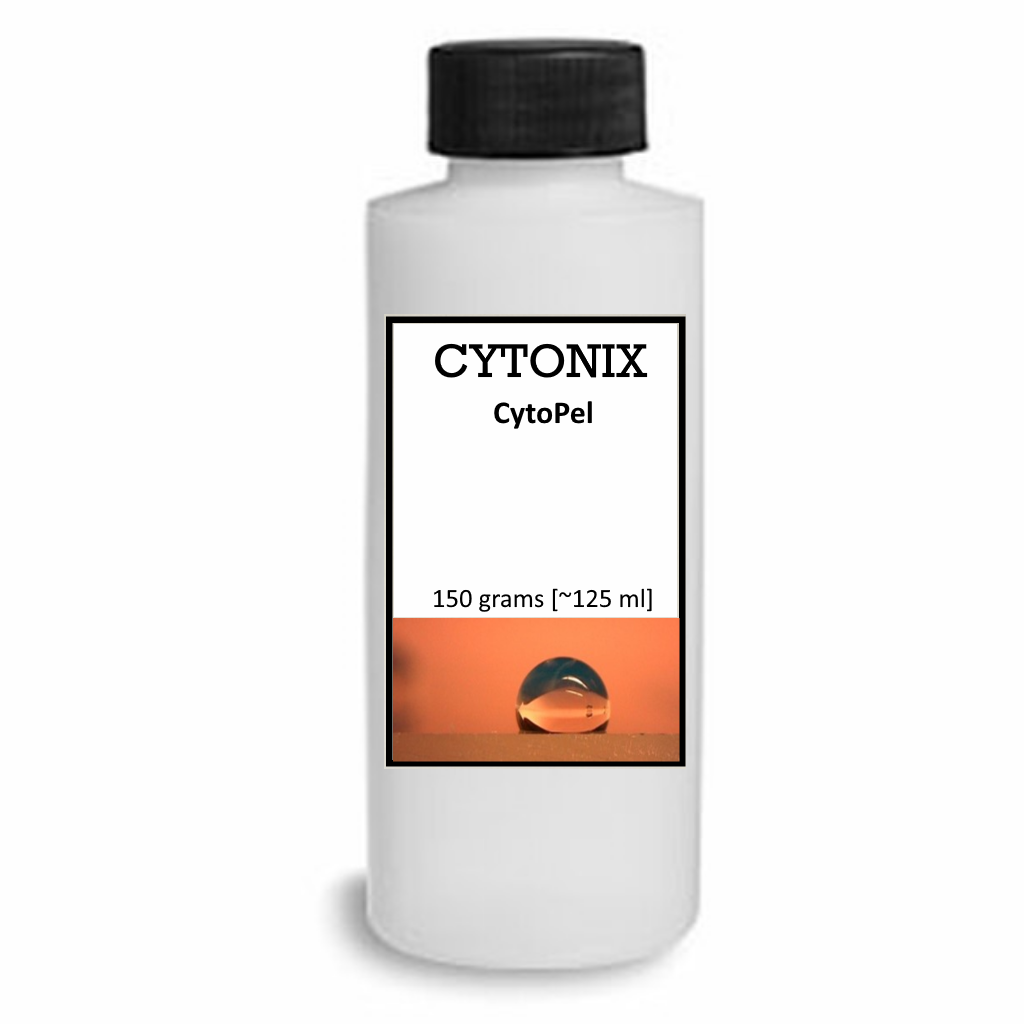

CytoPel 1100

CytoPel 1100 is low viscosity, low surface energy solution of a coating carried in a high boiling point (110°) fluoroether. This coating is designed for repellency to water, oils, buffers, reagents,and biofluids including blood.  CytoPel dries to a thin, transparent, long-lasting film with great hydrophobic and oleophobic properties. This conformal coating is easy to apply, non-flammable, and non-toxic.  This thin film coating will provide a water contact angle over 105° and a mineral oil contact angle over 60°. Application methods for CytoPel include pad printing, slot dye, spinning, spraying, and other common techniques.

Amount: 150 grams (~125 ml)
Application method: Pad printing, slot dye, etc.
Applications: Anti-Stiction, chemical protection, biofluid repellency, etc.
Coating thickness: 0.3 µm - 0.6 µm (at 4% concentration)
Dry time: 1 hour at RT (heat at 60 to 110°C optional)
Uses: R&D, micro fluidic devices, printer heads, etc.
Properties: Repels oils, water, hydrocarbons, silicones, blood, biofluids, etc.
Solids percent: 0.2, 1, 2 or 4%
Temperature range max: 175⁰C
Flammability: UL94 V-0
Moisture resistance: ~1 x 1012 Ω
Surface energy: 15 dynes/cm
Dielectric constant: 2.9 (at 1kHz, 30% relative humidity)
Dielectric strength: ~2800 V/mil
Surface insulation resistance: 1 x 10^15 Ω
Dissipation factor: 0.016 @ 1MHz
Water contact angle: 105⁰
Package options: 150 gram (bottle), 3 LBS (liter bottle), 10 LBS (gallon bottle), 60 LBS (6-gallon carboy)
