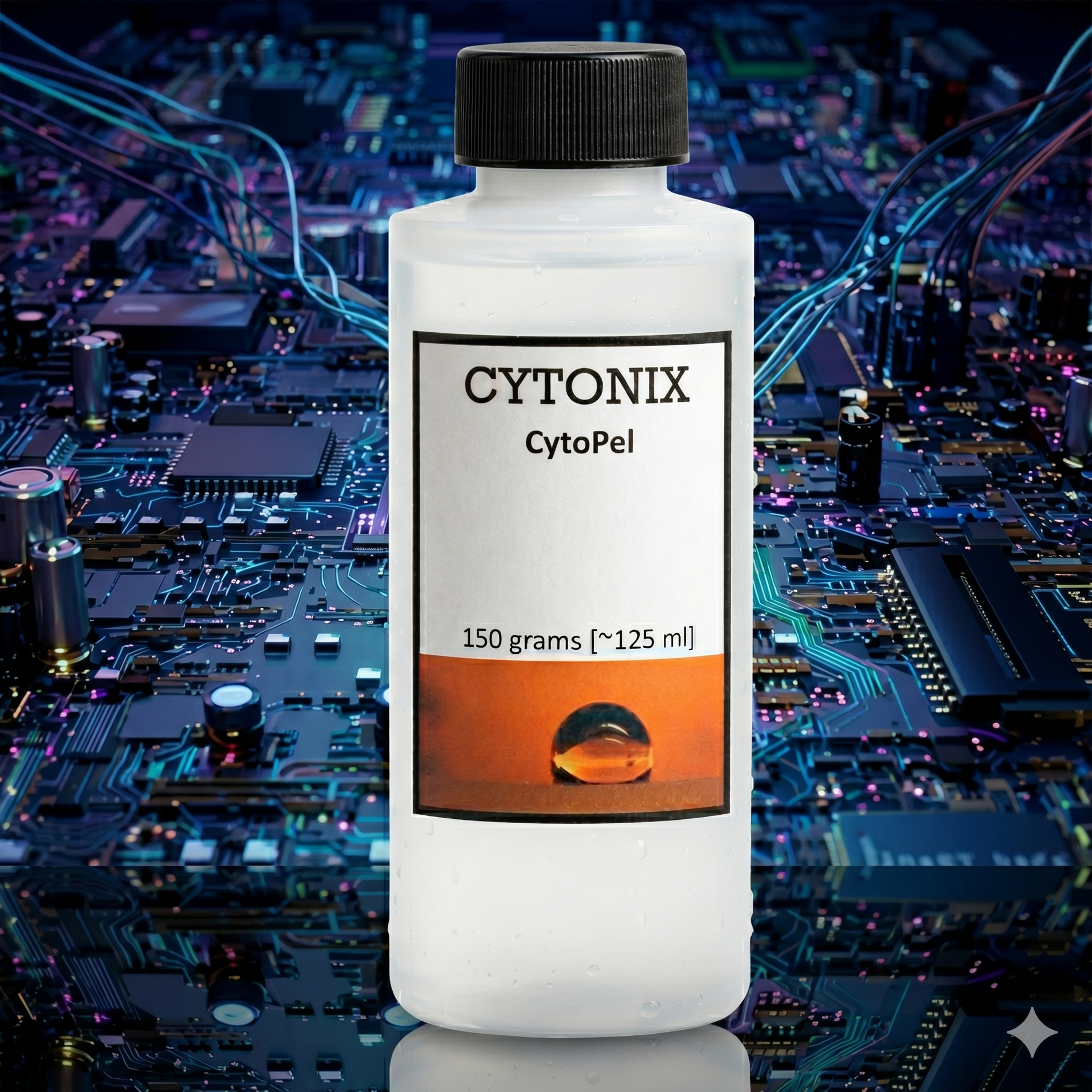

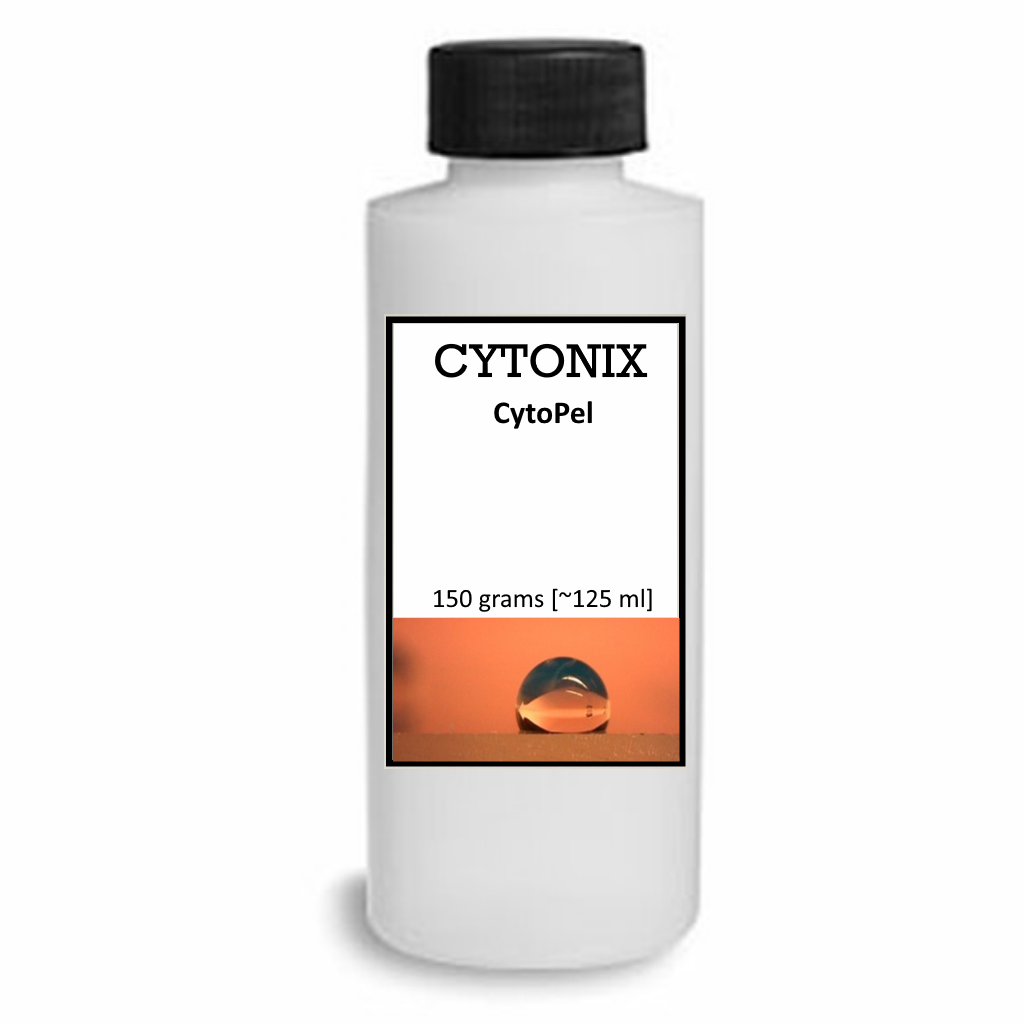

CytoPel 500

CytoPel 500

Regular price $54.00 USD
Regular price Sale price $54.00 USD
Sale Sold out
Shipping calculated at checkout.

CytoPel 500 is low viscosity, low surface energy solution of a coating carried in a hydrofluoroether solvent. This coating is designed for moisture and corrosion protection of printed circuit boards and other electronic devices. CytoPel dries to a thin, transparent, long-lasting film with great hydrophobic and oleophobic properties. This conformal coating is easy to apply, non-flammable, low in toxicity, non-ozone depleting and RoHS compliant. Thin films dry in a few minutes at room temperature to a surface energy of about 10 dynes/cm. This thin film coating will provide a water contact angle over 105° and a mineral oil contact angle over 60°. Application methods for CytoPel include dipping, brushing, wiping, spraying, etc. CytoPel 500 family coatings are good replacements for Novec 1700 series and Novec 1900 series electronic grade coatings.

CytoPel 500 0.2% is similar to Novec 1702
CytoPel 500 2% replaces Novec 1700 or Novec 1902
CytoPel 500 4% is similar to Novec 1904
CytoPel 500 8% is similar to Novec 1908
CytoPel 500 10% is similar to Novec 1710

Amount: 150 grams (~125 ml)
Application method: Brush, dip, selective dispense, spray, etc.
Applications: Anti-Stiction, chemical protection, corrosion protection, moisture protection
Coating thickness: 0.3 µm - 0.6 µm (at 4% concentration)
Dry time: 30 - 120 seconds (no cure needed)
Uses: R&D, printed circuit boards, solder joint, ball grit arrays, printer heads, and other electronic components
Properties: Repels oils, water, hydrocarbons, silicones, photoresists
Solids percent: 0.2, 1, 2, 4, 8, or 10%
Temperature range max: 175⁰C
Flammability: UL94 V-0
Moisture resistance: ~1 x 1012 Ω
Surface energy: 15 dynes/cm
Dielectric constant: 2.9 (at 1kHz, 30% relative humidity)
Dielectric strength: ~2800 V/mil
Surface insulation resistance: 1 x 10^15 Ω
Dissipation factor: 0.016 @ 1MHz
Water contact angle: 105⁰
Package options: 3 LBS (liter bottle), 10 LBS (gallon bottle), 60 LBS (6-gallon carboy)
