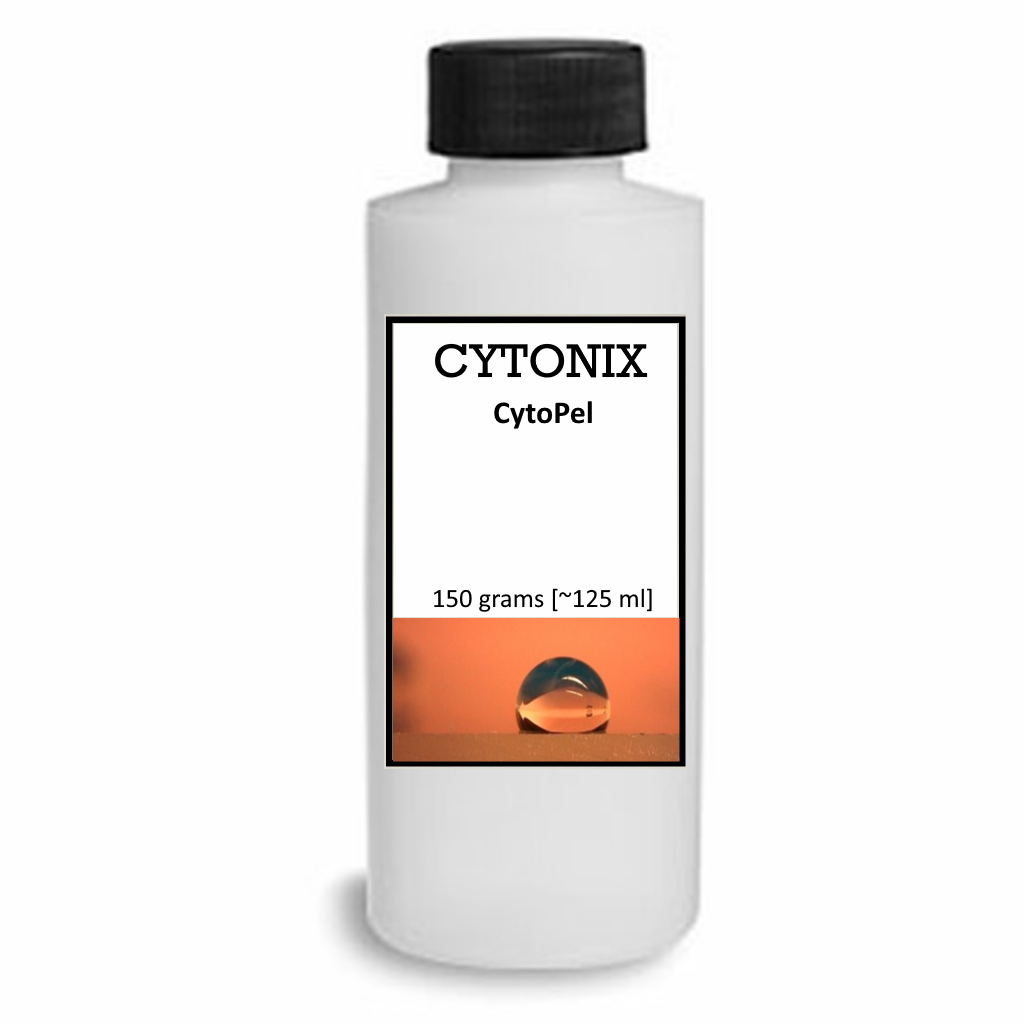

CytoPel 500 BIO

CytoPel 500-BIO is low viscosity, low surface energy solution of a biologics grade coating carried in a non-flammable solvent. This coating is designed for blood, serum, earwax, proteins, and other bio-fluids repellency.  CytoPel dries to a thin, transparent, long-lasting film with great hydrophobic and oleophobic properties. This conformal coating is easy to apply, non-flammable, and non-toxic. Thin films dry in a few minutes at room temperature to a surface energy of about 15 dynes/cm. This thin film coating will provide a water contact angle over 105° and a mineral oil contact angle over 60°. Application methods for CytoPel include dipping, brushing, wiping, spraying, etc.

Amount: 150 grams (~125 ml)
Application method: Brush, dip, selective dispense, spray, etc.
Applications: Anti-Stiction, chemicals protection, moisture protection, biofluids repellency, etc.
Coating thickness: 0.3 µm - 0.6 µm (at 4% concentration)
Dry time: 30 - 120 seconds (no cure needed)
Uses: R&D, microfluidic devices, hydrophobic barrier valves, biofluids repellent surfaces, hearing aids, sensors, etc.
Properties: Repels oils, water, hydrocarbons, silicones, photoresists
Solids percent: 0.2, 1, 2, 4, 8, or 10%
Temperature range max: 175⁰C
Flammability: UL94 V-0
Moisture resistance: ~1 x 1012 Ω
Surface energy: 15 dynes/cm
Dielectric constant: 2.9 (at 1kHz, 30% relative humidity)
Dielectric strength: ~2800 V/mil
Surface insulation resistance: 1 x 10^15 Ω
Dissipation factor: 0.016 @ 1MHz
Water contact angle: 105⁰
Package options: 3 LBS (liter bottle), 10 LBS (gallon bottle), 60 LBS (6-gallon carboy)
