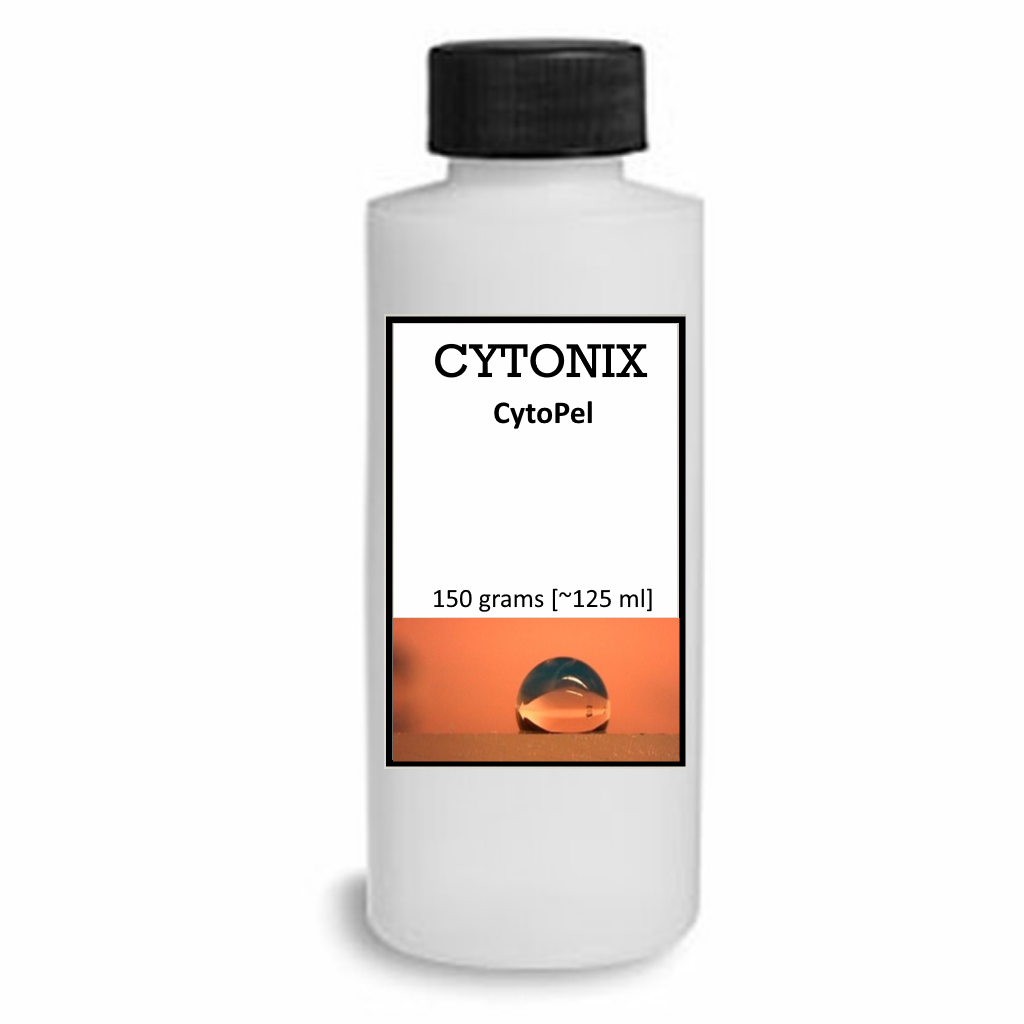

CytoPel N-series
CytoPel N-series
Regular price
$54.00 USD
Regular price
Sale price
$54.00 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
CytoPel N-series is low viscosity, low surface energy solution of a coating carried in a hydrofluoroether solvent. This coating is designed for moisture and corrosion protection of printed circuit boards and semiconductor chips. CytoPel dries to a thin, transparent, long-lasting film with great hydrophobic and oleophobic properties. This conformal coating is easy to apply, non-flammable, low in toxicity, non-ozone depleting and RoHS compliant. Thin films dry in a few minutes at room temperature to a surface energy of about 10 dynes/cm. This thin film coating will provide a water contact angle over 105° and a mineral oil contact angle over 60°. Application methods for CytoPel include dipping, brushing, wiping, spraying, etc. CytoPel N-series coatings are good replacements for Novec 1700 series and Novec 1900 series electronic grade coatings.
CytoPel N-1702 is similar to Novec 1702 (0.2%)
CytoPel N-1902 is similar to Novec 1902 (2%)
CytoPel N-1700 is similar to Novec 1700 (2%)
CytoPel N-1904 is similar to Novec 1904 (4%)
CytoPel N-1908 is similar to Novec 1908 (8%)
CytoPel N-1710 is similar to Novec 1710 (10%)
Amount: 150 grams (~125 ml)
Application method: Brush, dip, selective dispense, spray, etc.
Applications: Anti-Stiction, chemical protection, corrosion protection, moisture protection
Coating thickness: 0.3 µm - 0.6 µm (at 4% concentration)
Dry time: 30 - 120 seconds (no cure needed)
Uses: R&D, printed circuit boards, solder joint, ball grit arrays, printer heads, and other semiconductor parts and components
Properties: Repels oils, water, hydrocarbons, silicones, photoresists
Solids percent: 0.2, 1, 2, 4, 8, or 10%
Temperature range max: 175⁰C
Flammability: UL94 V-0
Moisture resistance: ~1 x 1012 Ω
Surface energy: 15 dynes/cm
Dielectric constant: 2.9 (at 1kHz, 30% relative humidity)
Dielectric strength: ~2800 V/mil
Surface insulation resistance: 1 x 10^15 Ω
Dissipation factor: 0.016 @ 1MHz
Water contact angle: 105⁰
Package options: 3 LBS (liter bottle), 10 LBS (gallon bottle), 60 LBS (6-gallon carboy)
