CytoThane AD

CytoThane-AD super-hydrophobic coating used on marine and ground-based microwave antenna, 5G antenna, radomes and other telecommunications gear to prevent rain fade. CytoThane-AD is a two-part durable super-hydrophobic coating. CytoThane-AD provides 140 to 165° contact angle performance in extreme sun and rain. CytoThane also significantly reduces snow and ice accumulation.  CytoThane is a potential replacement for DriWired SCH2, NeverWet, and Ultra Ever Dry.

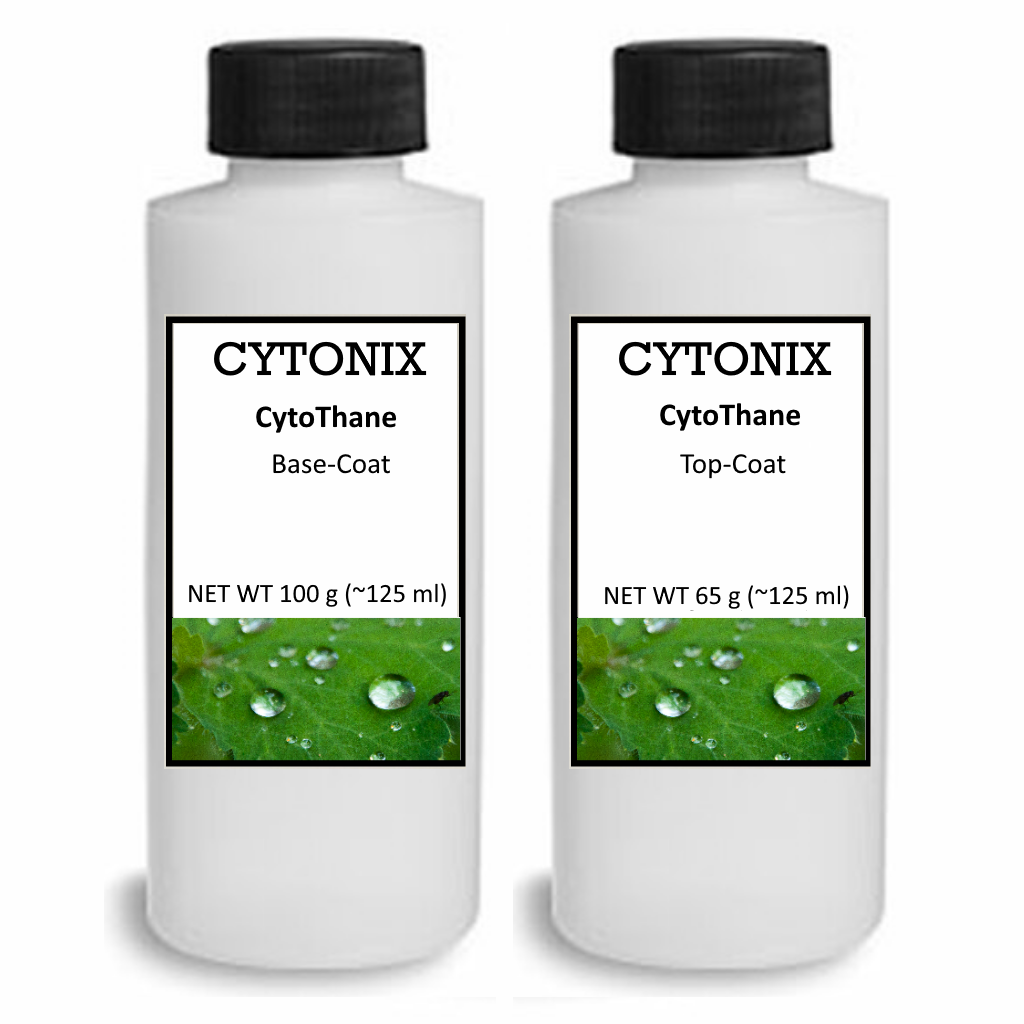

Size 125 ml: Net WT 88 g base-coat + Net WT 68 g top-coat

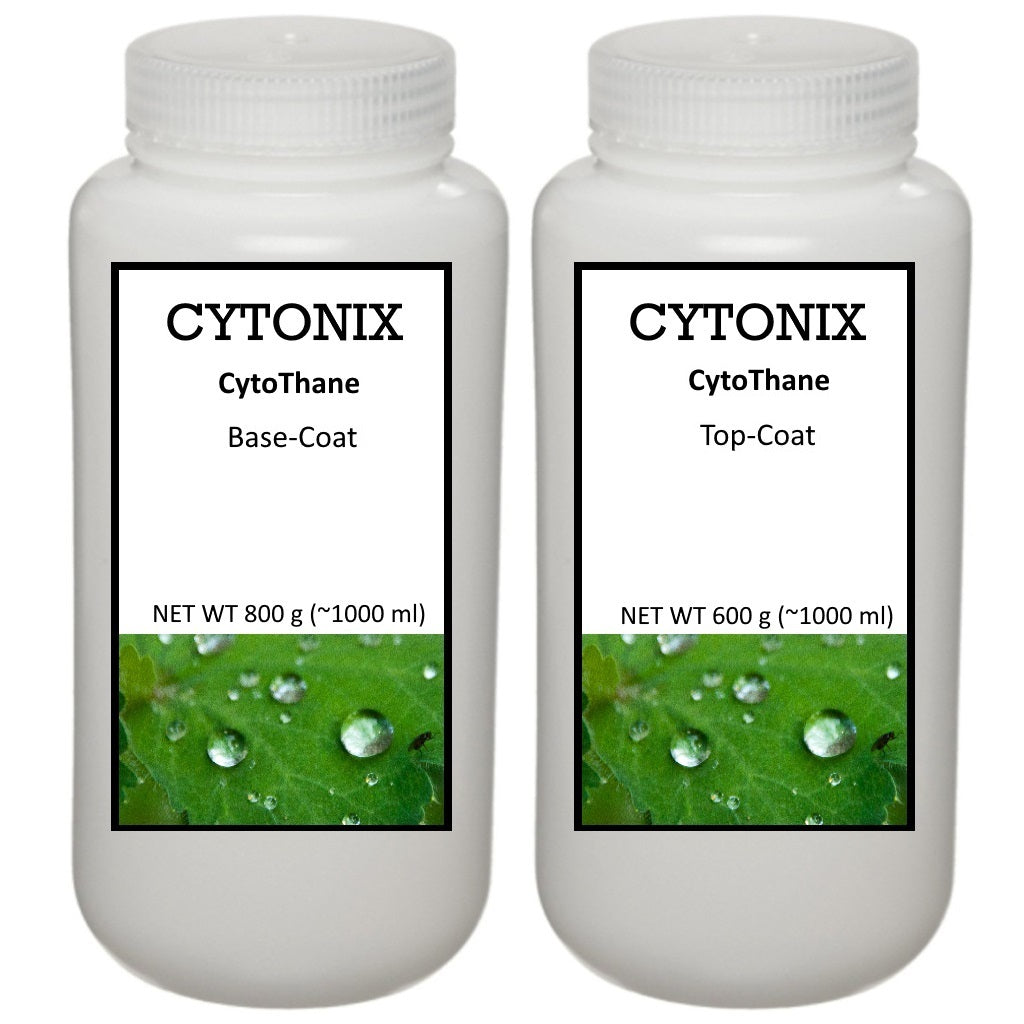

Size 1000 ml: Net WT 880 g base-coat + Net WT 680 g top-coat
Application: Spray or roll
Drying time: 2 hours
Colors: Frosty-white or Frosty-black
Flammable solvents: Base-coat- non-flammable, Top-coat- flammable(Acetone)
Storage temperature: 20-30°C
Shelf life: 1 year
Durability: 1 - 5 years (varies based on environmental conditions)
Dielectric constant: 3 at 100 MHz
Electrical resistivity: ~2 tera ohms
Taber abrasion: Super-hydrophobic after 10 cycles with CS10 wheel
Thickness: 80-100 micrometers
Shipping: Available in the continental USA only

Description: When rain creates a water or ice film on antenna, satellite dishes, and sensors it results in reduced or lost signal. On FluoroThane coated dishes rain drops bead-up and roll-off resulting in reduced water and ice build-up. Water contact angles greater than 140° with a drop roll-off angle of less than 0.7° can be easily achieved.
Application: The temperature of the surface to be sprayed should be between 45°F and 95°F. Keep container at room temperature prior to use. All surfaces need to be dry and free from wax, grease and polishes for good adhesion. First shake the bottle of BASE COAT vigorously for 30 seconds. Hold the spray-gun vertically 8-10 inches from the surface. Depress the trigger button fully. Move the spray-gun evenly across the surface covering 6-10 inches per second. Apply half overlapping strokes 3-4 inches apart. Shake the reservoir for a few seconds every 60 seconds. Allow the BASE COAT to dry for 20 minutes or more before applying the TOP COAT. Shake the bottle of TOP COAT vigorously for 30 seconds. Hold the spray-gun vertically 8-10 inches from surface. Depress the button fully. Move the spray-gun evenly across the surface covering 6-10 inches per second. Apply half overlapping strokes 3-4 inches apart. Shake the reservoir for a few seconds every 60 seconds. Allow the coating to dry for over 24 hours before exposing to rain. The coating can be exposed to the elements after 24 hours of drying but will reach maximum durability after 4-5 days. Surface temperatures should be between 32 and 95°F during spray application. Coverage of 1000 ml (X2) of TS is 20 square meters.  For best long term performance avoid touching the coated surface.
