CytoThane R04

CytoThane-R04 is a super-hydrophobic coating used on marine and ground-based microwave antenna, 5G antenna, radomes, flat panel antenna, and other telecommunications gear to prevent rain fade. CytoThane is a one-part easy to use super-hydrophobic coating. CytoThane  provides 140 to 165° contact angle performance in extreme sun and rain. CytoThane also significantly reduces snow and ice accumulation.

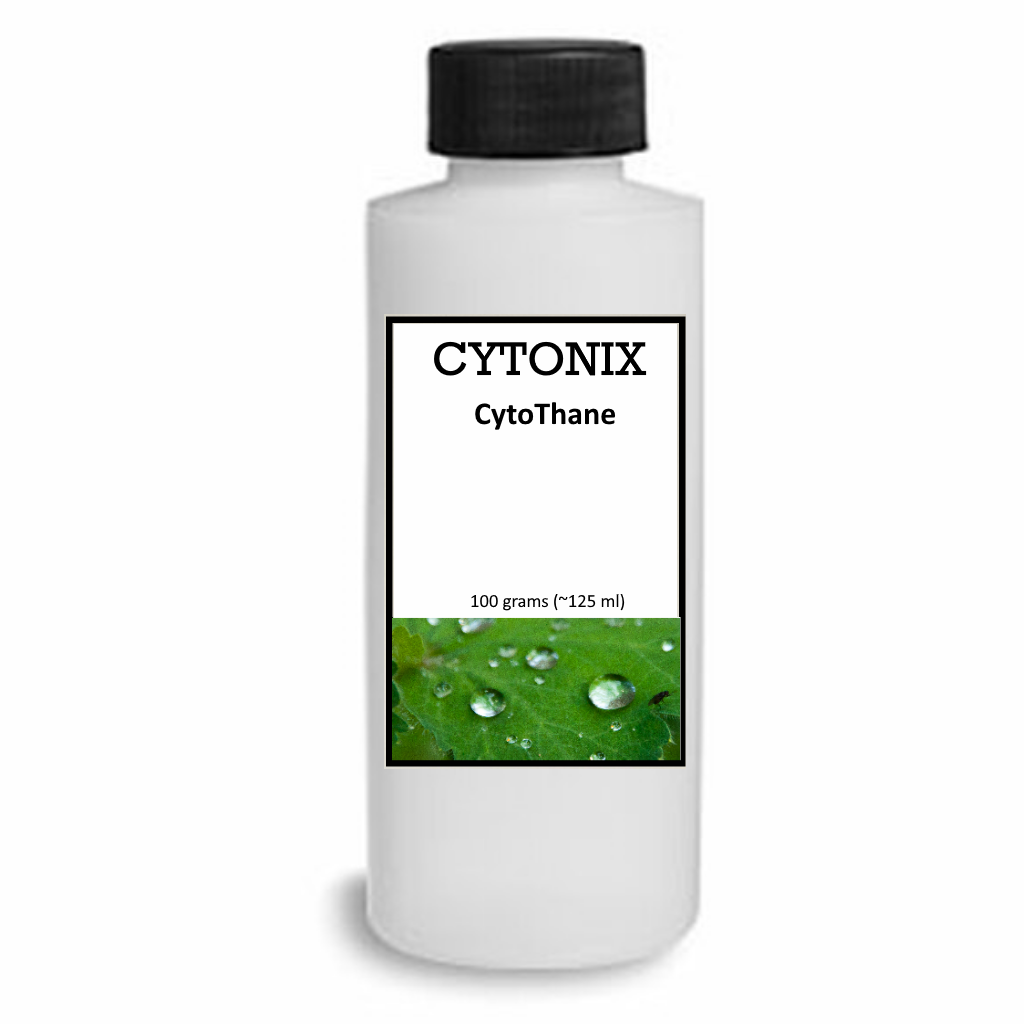

Size 1: 125 ml (Net WT 100 g)

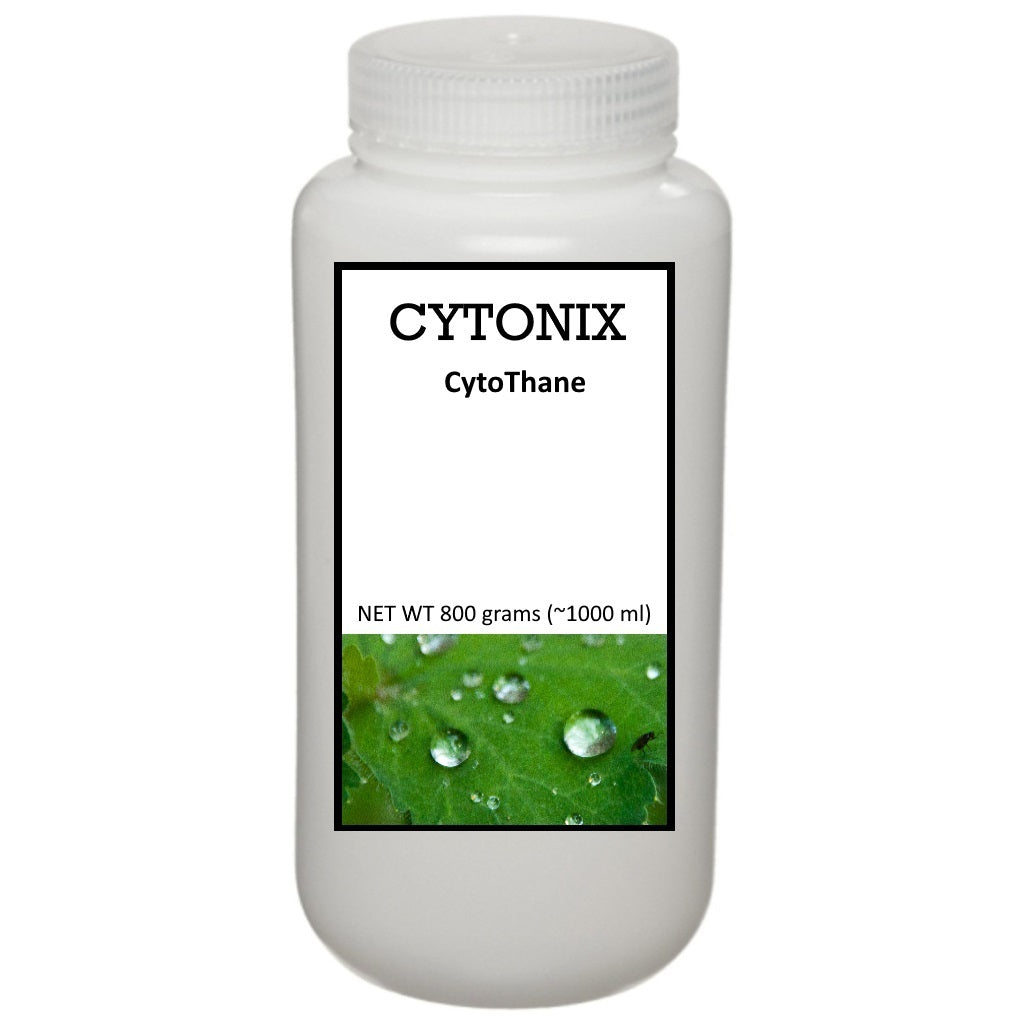

Size 2: 1000 ml (Net WT 800 g)
Application: Roll-on or Spray
Drying time: 2 hours
Colors: Frosty-White
Flammable solvents: Flammable
Storage temperature: 20-30°C
Shelf life: 1 year
Durability: 1 - 5 years (varies based on environmental conditions)
Dielectric constant: 3 at 100 MHz
Electrical resistivity: ~2 tera ohms
Thickness: 5-20 micrometers

Description: When rain creates a water or ice film on antenna, satellite dishes, and sensors it results in reduced or lost signal. On CytoThane coated dishes rain bead-up and roll-off resulting in reduced water and ice build-up. Water contact angles greater than 140° with a roll-off angle of less than 1° can be easily achieved.

Application by roller:  Shake the bottle of vigorously for 60 seconds. CytoThane should be applied with rollers that are 4-inches long with nap thickness of half-inch. The 4 edges of the panel should be coated first. And then the coating should be rolled out over the panel surface in an up-down direction, followed by a left-right direction to ensure thorough and even distribution. The key objective is to ensure that CytoThane is uniformly distributed on the surface . For best rain performance, avoid touching or abrading the surface. Coverage of 1000 ml is 20 square meters. Cleanup with acetone.

Application by Spray: Surface should be clean, dry and free of oils and detergents.  Two-part gel coats should be lightly sanded. Check lid for tightness and then shake product vigorously for 60 seconds just prior to use. Surface and ambient air temperature should be 45-85°F. Spray coating at a gun distance and speed so as to just cover the surface. Do not try to "build" the coating for a wet or visible edge. Use only gravity-feed HVLP (1.0 to 2.0 mm fluid tip) set at full fan and 2 to 2.5 turns feed, with 10-50% overlap at 35 psi (dynamic at pump; 25" hose), a gun distance of 5 to 6 inches and a rate of 5 to 7 inches per second is optimal. Spray pattern for a single pass should coat a 5 to 6-inch-wide strip. Agitate coating in gun reservoir every few minutes. Large external reservoirs should have continuous mixing. The coating should appear immediately after application as a barely visible translucent frost. Coverage is 20 to 50 square meters per 1000 ml (~800 grams) depending on percent overlap and degree of dispersion. Clean up immediately with acetone. Coating will be light rain resistant in 30 minutes, substantially cured in 24 hours, and full coating properties will be developed in 7 to 10 days. Exposure to UV and heat (120°F) will facilitate cure. If heavy rain is expected within 12 hours, cover loosely with polyethylene film. For best rain performance, avoid touching or abrading active surface.
