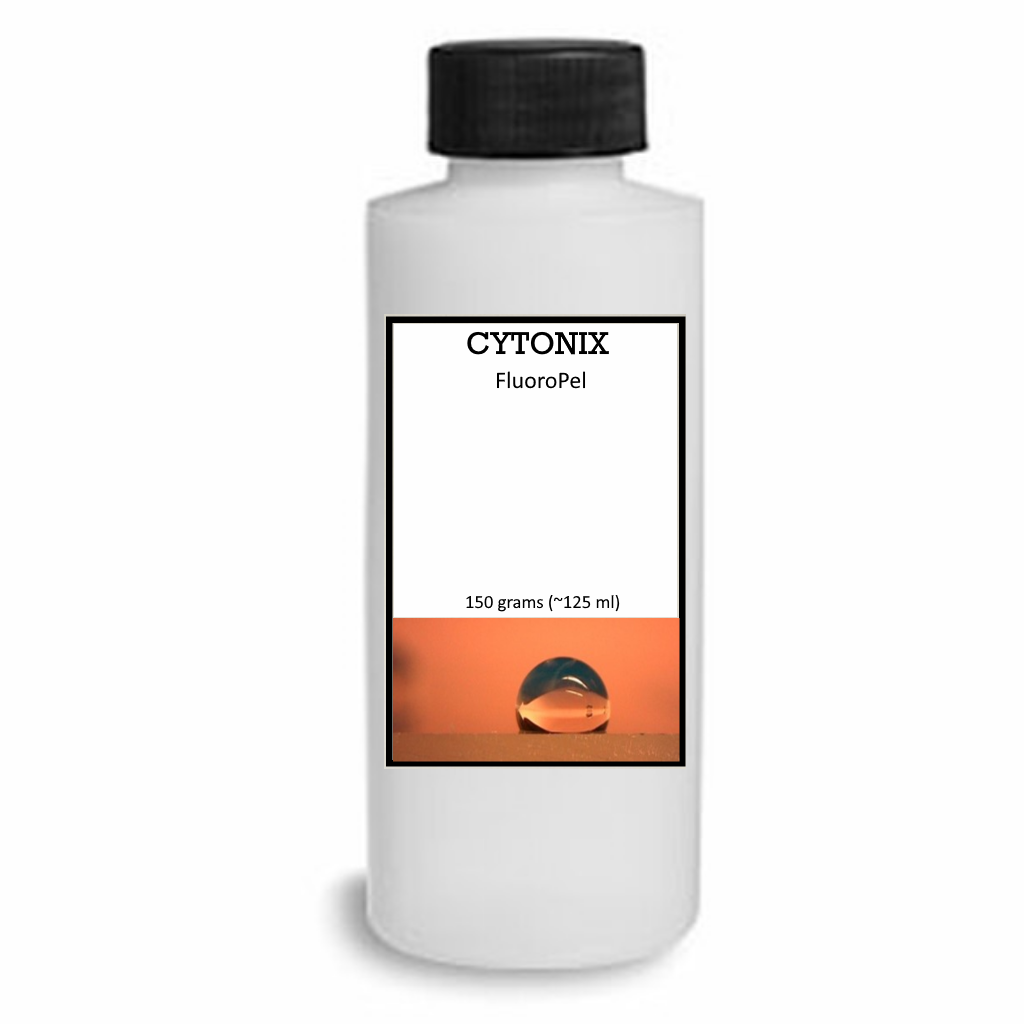

FluoroPel 101X
FluoroPel 101X
FluoroPel 101X is low viscosity, low surface energy solution of a coating carried in a hydrofluoroether solvent. This coating is designed for moisture and corrosion protection of printed circuit boards and other plastic, glass and metal devices. FluoroPel dries to a thin, transparent, permanent film with great hydrophobic and oleophobic properties. This conformal coating is easy to apply, non-flammable, low in toxicity, non-ozone depleting and RoHS compliant. This version of FluoroPel has a UV-tracer for quality control inspection of coated parts. Thin films (100 - 200 nanometers) dry in a few minutes at room temperature to a surface energy of about 10 dynes/cm. This thin film coating will provide a water contact angle over 105° and a mineral oil contact angle over 60°. Application methods for FluoroPel include dipping, brushing, wiping, spraying, etc. Please contact Cytonix for help with custom formulations or for high volume pricing. FluoroPel 101X is equivalent to DryWired 101X.
Amount: 150 grams (~125 ml)
Application method: Dipping, spray, syringe-dispense, brushing
Applications: Anti-Stiction, moisture, chemical and corrosion protection
Coating thickness: 100 - 200 nm
Dry time: 30 - 120 seconds
Uses: Solder joints, printed circuit boards, ball grit arrays, printer heads (R&D and industrial)
Properties: Repels oils, water, hydrocarbons, silicones, photoresists
Solids percent: 0.2, 1, 2, 4, 6 , 8 or 10%
Thermal cure time: < 1 minute (60-100°C for 10 minutes optional)
Temperature range: -40 to 250⁰C
Flammability: UL94 V-0
Moisture resistance: ~1 x 1012 Ω
Surface energy: <15 dynes/cm
Dielectric constant: 3.0 (at 1kHz, 30% relative humidity)
Dielectric strength: ~60 kV/mm
Surface insulation resistance: 1 x 10^15 Ω
Dissipation factor: 0.016 @ 1MHz
Water contact angle: 105⁰
Package options: 3 LBS (liter bottle), 10 LBS (gallon bottle), 60 LBS (6 gallon carboy)
PRODUCT DOCUMENTS:
Video - using FluoroPel to make phone water resistant
