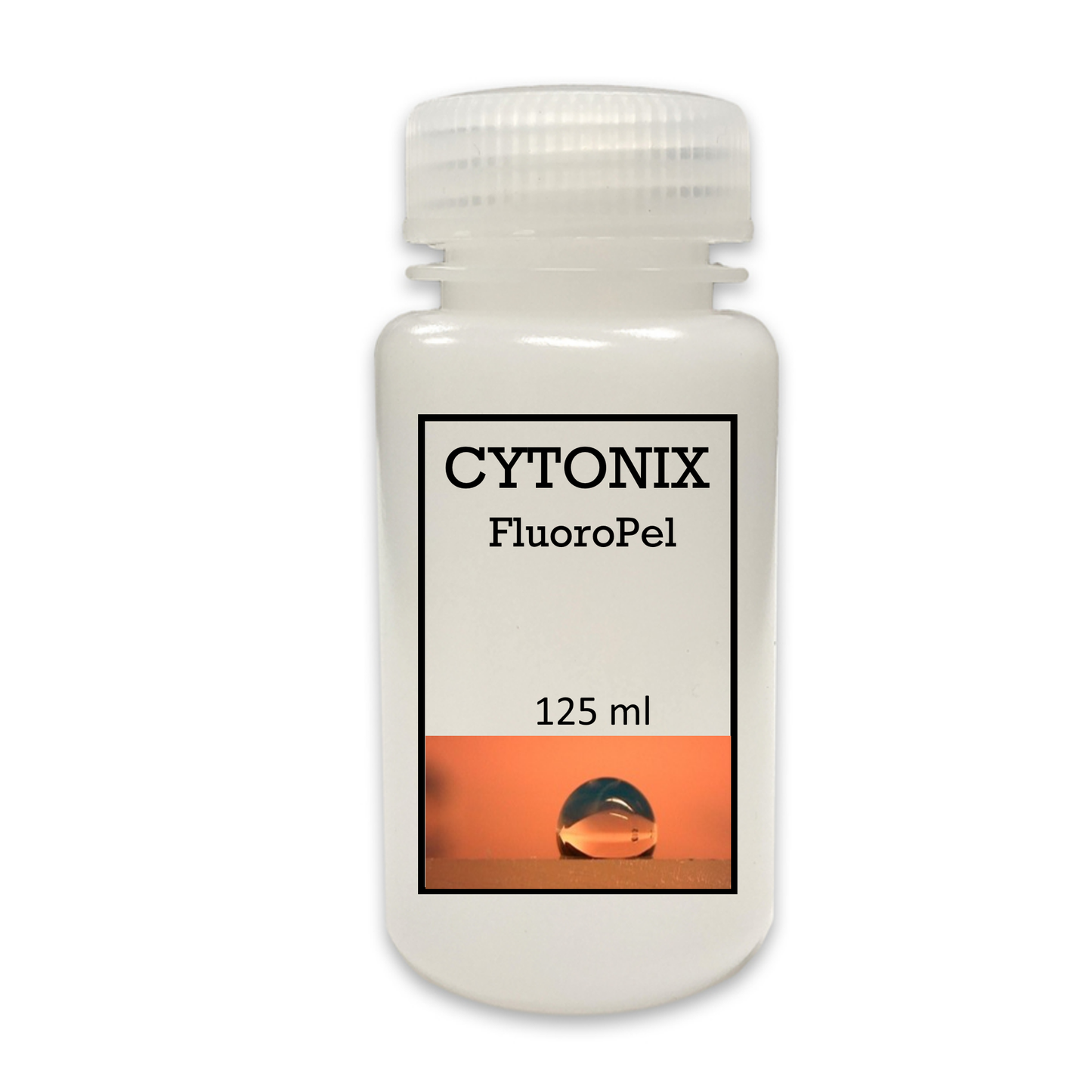

FluoroPel PFC804A

FluoroPel 804A is an electronics grade conformal coating at a concentration of 4% in a quick drying non-flammable solvent. Thin films (~0.4 microns) dry in a few minutes at room temperature to a surface energy of about 10 dynes/cm, water contact angle over 110°, and mineral oil contact angle over 70°. Warming to 50 to 100°C for 10 minutes will improve coverage and adhesion. Please contact Cytonix for help with product selection or with any questions.

Sample volume: 150 grams (125 ml bottle)
Application method: Dipping, spray, syringe-dispense, brushing, damming, etc.
Applications: Anti-Stiction, moisture repellent, oil repellent, etc.
Coating thickness: 300 - 400 nm ‎
Dielectric constant: 3.0 (at 1kHz, 30% relative humidity)
Dielectric strength: 1000 V/mil (@ 30% relative humidity)
Dry time: 60 seconds
Uses: Solder joints, printed circuit boards, ball grit arrays, plastic components, etc.
Properties: Repels oils, water, hydrocarbons, silicones, photoresists Solids percent: 4%
Thermal cure time: Optional (50-100°C for 10 minutes)
