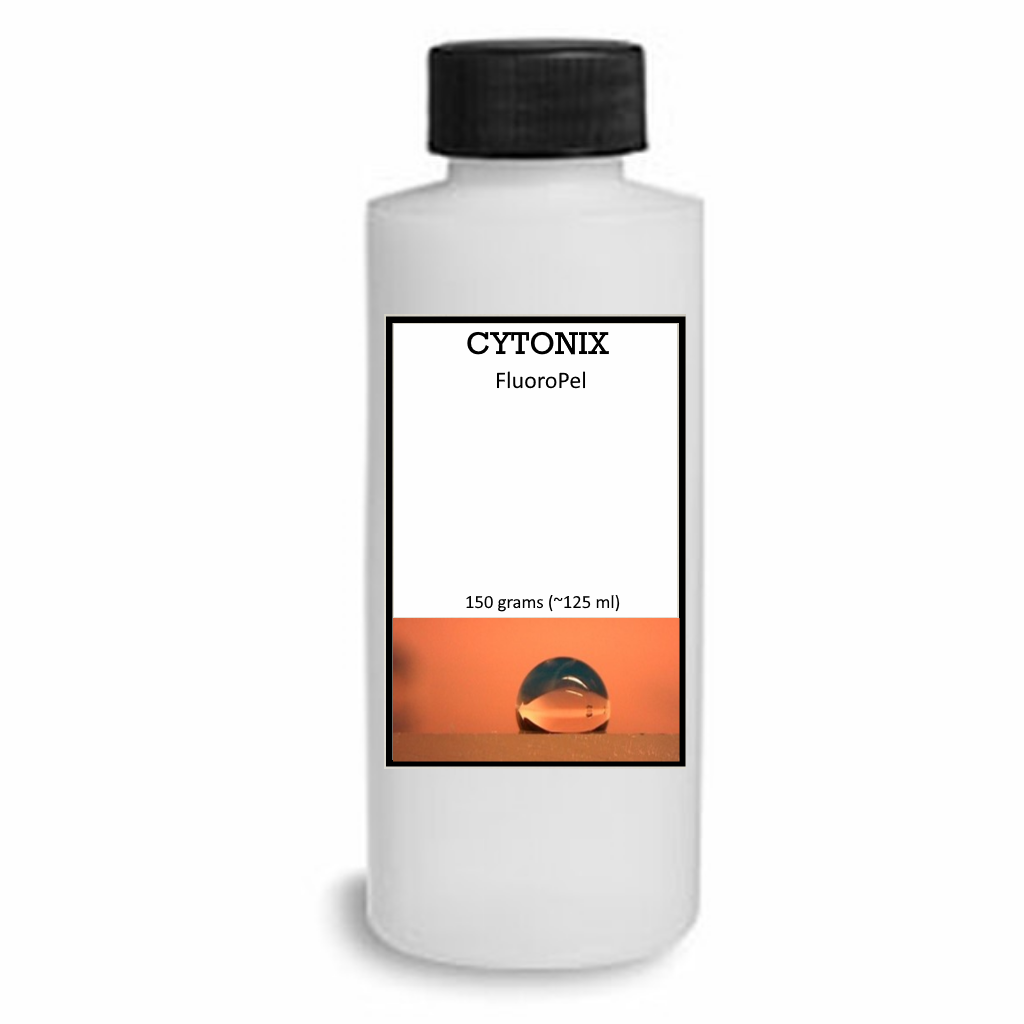

FluoroPel 600

FluoroPel 600

Regular price $49.00 USD
Regular price Sale price $49.00 USD
Sale Sold out
Shipping calculated at checkout.

FluoroPel 600 series is a fluoroacrylic copolymer solution in a safe and non-flammable fluorosolvent (BP=60°C) for coating membranes, glass, plastic and metal surfaces. Thin films dry in a few minutes at room temperature to a surface energy of about 10 dynes/cm. Warming to 90°C for 10 minutes optimizes adhesion and reduces the surface energy to about 8 dynes/cm. PFC600 series solutions are recommended for dip or spin application. On membranes, mesh and filters, FluoroPel does not occlude pores and helps achieve oleophobicity grades up to 8. FluoroPel co-polymers with Alkoxy Furfural (AFA) functionality improves adhesion to plastics such as vinyl and polycarbonate. Trimethoxy Silane (FS) functionality improves adhesion to glass, ceramic and metal. Epoxy, TFH, Lauryl and Isobornyl functionality improves adhesion to many substrates. Formulations with fluorescent tracers are also available.  FluoroPel is a good replacement for DryWired 101X.  Please contact Cytonix for custom formulations or help with product selection.

Size: 150 grams (~125 ml)
Shelf life: Two years (in sealed unopened container)
Application methods: Immersion, spin, dipping, spray, etc.
Curing: Air dry at room temperature in 5 minutes (and bake 50-100°C for 10 minutes if possible)
Appearance: Clear, odorless and colorless film
Contact angle to water: 110-120°
Contact angle to mineral oil: >65°
Oleophobicity grade: 7
Hardness: >2B pencil
Flammability: Non-burning
Temperature range max: 175°C
Refractive index: ~1.34
Toxicity of films: HMIS Rating Health = 1
Ease of application: Excellent
Solvent/chemical resistance: Excellent after curing
Transparent: Yes
Electric conductivity: Yes (at <0.5 µm film thickness)
Ease of drying: Dries at room temperature in <5 minutes
UV tracer:  Available upon request
Applications: Consumer electronics, Ruggedized electronics, PCBAs, Sensors, Optics, Drone components, Avionics, Micro motors, Ball bearing tracks, Ink-jet print heads, Connectors
