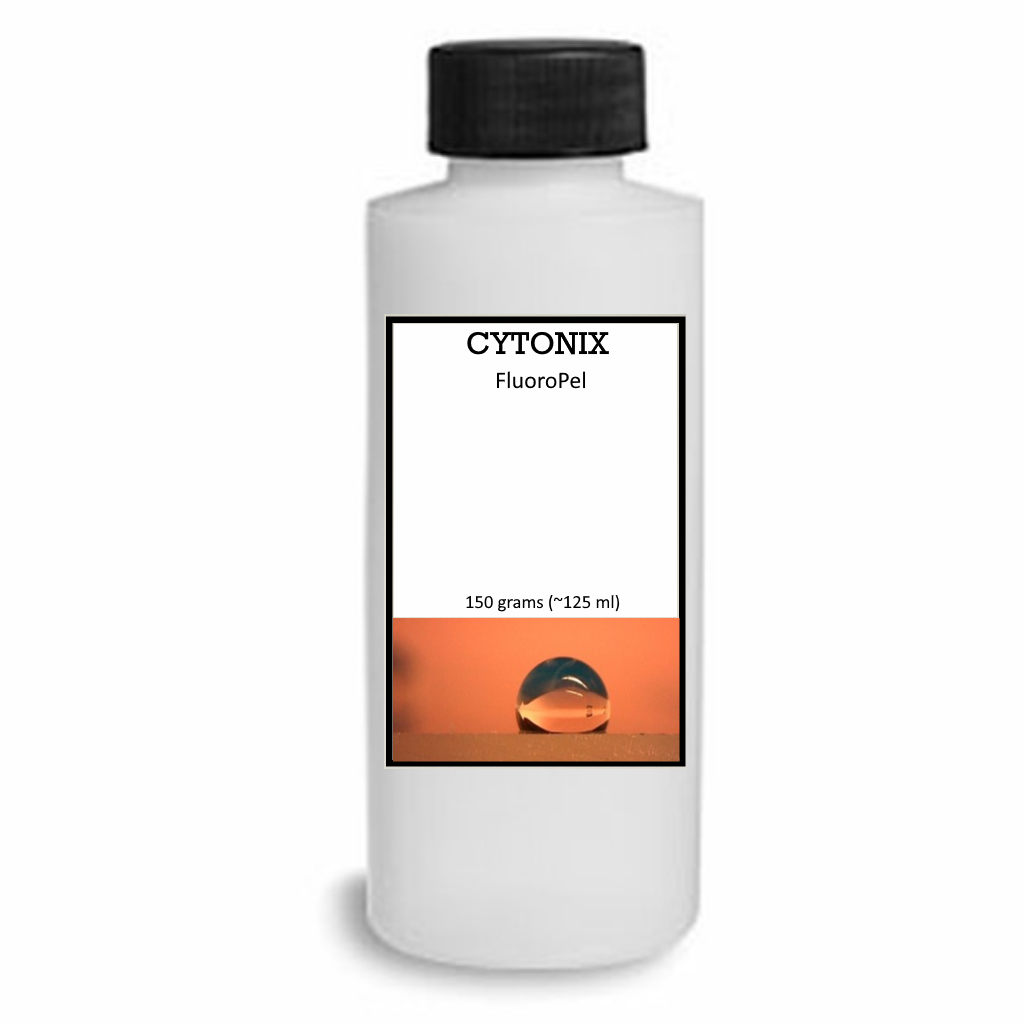

FluoroPel 804

FluoroPel is a fluoroacrylic conformal coating in a quick drying fluorosolvent (60-80°C). Formulations with UV-tracers are also available. Thin films (0.1 to 0.8 microns) dry in a few minutes at room temperature to a surface energy of about 10 dynes/cm. This thin film coating will provide a water contact angle over 110° and a mineral oil contact angle over 70°. Application methods for FluoroPel include dipping, brushing, wiping, spraying, etc. Please contact Cytonix for help with product selection, custom formulations or with any questions.

Amount: 150 grams (~125 ml)
Application method: Dipping, spray, syringe-dispense, brushing
Applications: Anti-Stiction, moisture, chemical and corrosion protection
Coating thickness: 100 nm or less
Dielectric constant‎: 3.0 (at 1kHz, 30% relative humidity)‎
Dielectric strength‎: 1000 V/mil (@ 30% relative humidity)
Dry time: 30 - 120 seconds‎
Uses: Solder joints‎, printed circuit boards, ball grit arrays, printer heads
Properties: Repels oils, water, hydrocarbons, silicones, photoresists
Solids percent: 4%‎
Thermal cure time: < 1 minute (60°C for 10 minutes optional)
