CYTONIX

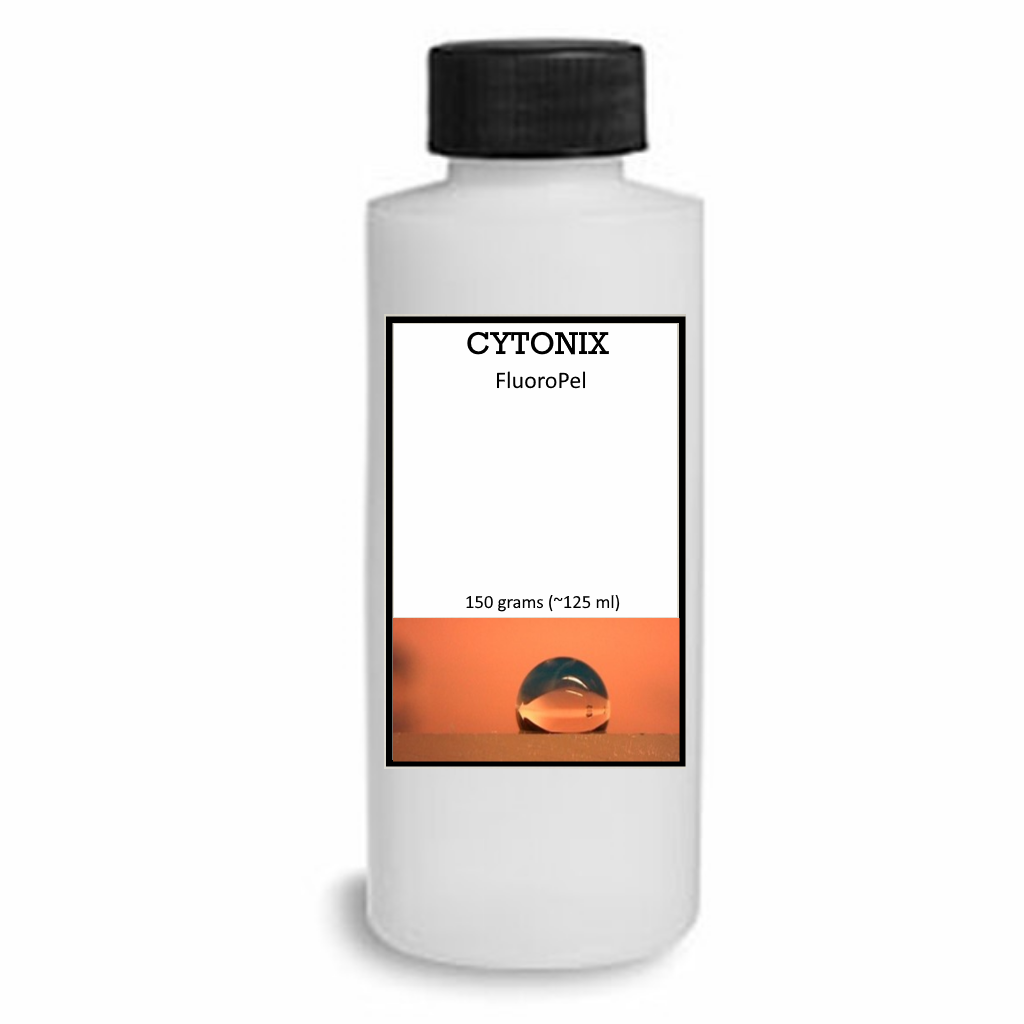

FluoroPel 500 PC

FluoroPel 500 PC

Regular price $54.00 USD
Regular price Sale price $54.00 USD
Sale Sold out
Shipping calculated at checkout.
Concentration
FluoroPel 500 PC is low viscosity, low surface energy solution of a coating carried in a hydrofluoroether solvent. This coating is designed for moisture and corrosion protection of printed circuit boards and other electronic devices. 500 dries to a thin, transparent, permanent film with great hydrophobic and oleophobic properties. This conformal coating is easy to apply, non-flammable, low in toxicity, non-ozone depleting and RoHS compliant. This version of FluoroPel has a UV-tracer for quality control inspection of coated parts. Thin films (100 - 200 nanometers) dry in a few minutes at room temperature to a surface energy of about 10 dynes/cm. This thin film coating will provide a water contact angle over 105° and a mineral oil contact angle over 60°. Application methods for FluoroPel include dipping, brushing, wiping, spraying, etc. FluoroPel 500 PC 4% and 8% are good replacements for Novec 2704 and Novec 2708, respectively. Please contact Cytonix for help with custom formulations or with any questions.

Amount: 150 grams (~125 ml)
Application method: Brush, dip, selective dispense, spray, etc.
Applications: Anti-Stiction, chemical protection, corrosion protection, moisture protection
Coating thickness: 0.3 µm - 0.6 µm (at 4% concentration)
Dry time: 30 - 120 seconds (no cure needed)
Uses: R&D, printed circuit boards, solder joint, ball grit arrays, printer heads, and other electronic components.
Properties: Repels oils, water, hydrocarbons, silicones, photoresists
Solids percent: 0.2, 1, 2, 4, or 8%
Temperature range max: 175⁰C
Flammability: UL94 V-0
Moisture resistance: ~1 x 1012 Ω
Surface energy: 15 dynes/cm
Dielectric constant: 2.9 (at 1kHz, 30% relative humidity)
Dielectric strength: ~2800 V/mil
Surface insulation resistance: 1 x 10^15 Ω
Dissipation factor: 0.016 @ 1MHz
Water contact angle: 105⁰
Package options: 3 LBS (liter bottle), 10 LBS (gallon bottle), 60 LBS (6-gallon carboy)
